Headset Compression Guide

1. Start by loosening the clamp bolts with a 5mm Allen key and removing the handlebars by pulling them up and off the fork.

2. Insert a 5mm Allen key into the bolt holding down the compression shim. Hold the shim still to the headset to prevent it from spinning and turn the Allen key to adjust the headset, to tighten the headset, turn the Allen key clockwise, and loosen turn anticlockwise.

You should be able to easily rotate the forks in the headset by hand without the handlebars attached. If you feel resistance, or can feel the forks rotating in ‘notches’, there might be too much pressure and you should loosen the headset. Equally, if you feel the fork can rock back to front or side to side inside the headset, you might need to slightly tighten the headset. Take some time to find the sweet spot and turning your bars will feel silky smooth!

Bars

Headset

Maintenance, Safety & Warranty

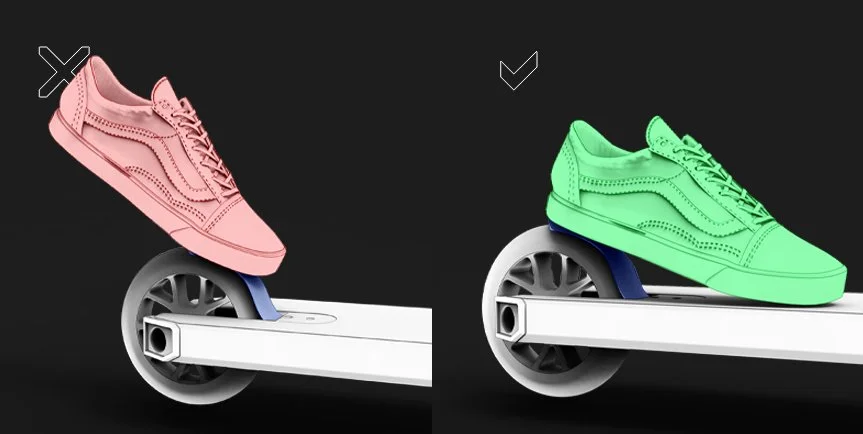

Now you know the basics behind maintaining your scooter but there are a couple more things to keep in mind to make sure you develop the right habits that will help keep your scooter in tip-top condition for as long as possible. You should try to use the heel of your foot to brake, not your toes. Always store your scooter in a dry place and wipe your scooter down with a soft damp cloth after use to keep it clean and prevent rusting. We recommend using water to clean your scooter as solvents and bleaches can corrode your scooter. Finally, if you need to replace any damaged or worn-out components make sure you use Slamm replacement components sold by our dealers. We advise against making any structural changes as our scooters are made to function with our specially designed components and we can’t guarantee your safety when you’re riding with other brands’ gear!

Getting ready to ride

You’re almost ready to ride! But before you can start ripping up the park, we’ve got a few tips to help you maintain your scooter and make sure you’re riding safely! Above all, you should make sure all the locking nuts and bolts are tight, the brake works correctly, and the wheels are secure. You should check your scooter regularly as over time, self-locking threads can lose their effectiveness, and components such as wheels and bearings may wear down or become damaged. To keep your wheels looking fresh and running smoothly, we recommend rotating the front and back wheels and braking gently to avoid flat spots.

Bearings used in the headset should be cleaned and greased regularly to avoid damage. However, bearings used in the wheels are fitted with a sealed cap so they don’t need greasing but will benefit from a wipe every so often to remove any grit or dirt stuck to them.

Final Checks

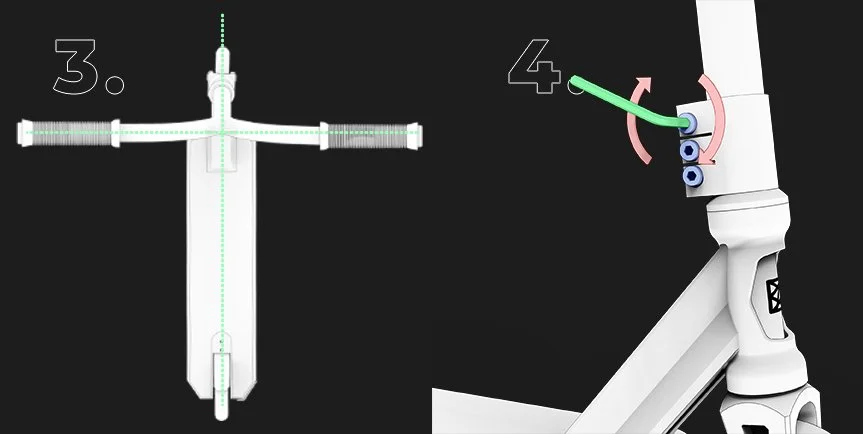

3. Make sure the front wheel is straight to the deck. Holding the wheel still, alight the bars so they are at a right angle to the deck/wheel. Keeping everything straight, tighten the bottom of the clamp up slightly to keep the bars in place on the fork stem.

4. Finally tighten the rest of the bolts, working your way up the scooter and tightening each bolt a bit at a time to keep an even pressure. Once you reach the top, repeat this process until the bars are completely secure.

Applying The Bars

First of all, we recommend you check the bars are fitted correctly. Ill-fitted bars may be too loose or too tight, which can limit your ability to turn and perform tricks. To prevent this from happening we’ve split this process into 4 simple steps:

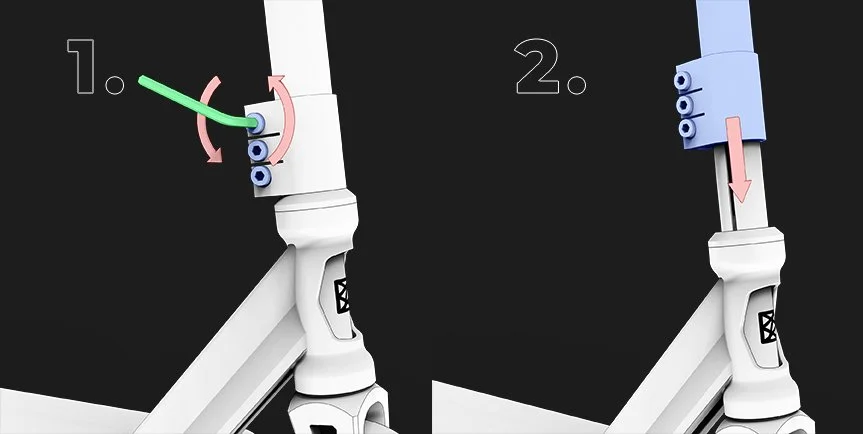

1. Start by sliding the bar onto the fork stem. If it’s too tight, loosen the clamp bolts using a 5mm Allen key

2. Now slide the bars down until it sits flush with the top of the headset. It’s important that the back of the clamp is in line with the slot at the back of the bar stem, this allows it to pinch evenly on the bars.

Safety

Safety in extreme sports is paramount. Always wear protective products such as helmets and pads and make sure you read the rules and safety requirements of the skate parks you visit. Always observe and abide by the rules park rules, most skate parks will have a display board with their rules and safety measures.

Be Careful! You will see other riders doing tricks and stunts at skate parks. These riders are people who have been practicing on scooters for a very long time. Don’t try something until you’re ready!

When you unbox your Slamm Scooter you will find an instruction manual enclosed as well as a Warning hang tag on the bars. It is important that you read all safety information supplied.

Always wear a helmet and protective pads including knee, elbow and wrist guards.
Do not ride while wearing loose fitting clothing that could catch on the scooter.
Wear appropriate shoes that cover your toes while riding.
Do not use the scooter at night, on hills, at high speed or near traffic.
Do not use on wet, uneven or unpaved surfaces.
Always check your wheels, axles and clamp bolts are tight and the brake is working correctly before use.
Always follow the guidelines in the instruction manual supplied with your scooter.

Warranty

Slamm Scooters come with a limited warranty of 90 days. This warranty covers against manufacturing defects and does not cover normal wear items such as wheels, bearings or headsets. This warranty does not cover damage caused by:

Misuse, or contrary to the advised or agreed use, improper assembly or maintenance or normal wear
Improper installation of parts of the scooter
External causes, such impacts against curbs, barriers, obstacles and sudden or excessive forces or stresses
Inappropriate repairs or modifications

Warning! If you ride your scooter in a manner that places large forces and stresses on the product, the scooter will not be covered under warranty. The scooter is designed to meet applicable safety standards, however, the forces exerted through extreme riding may cause premature wear to all parts!

Our scooters conform to EN14619:2015
